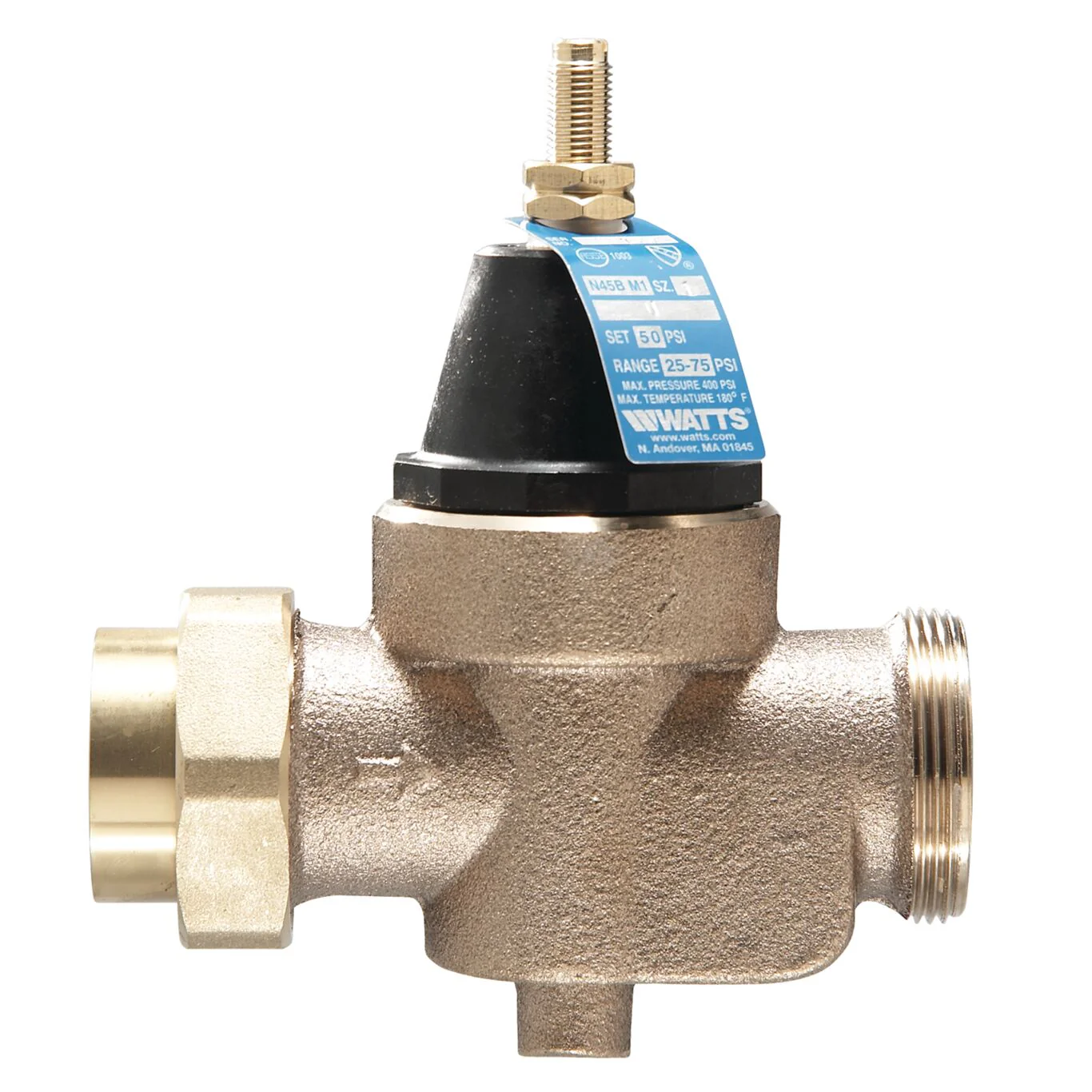

Watts LFN45BU-070-M1 1 - Part of the LFN45B Series

This 1 inch lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing components and reduce the water consumption for commercial, industrial and residential applications. It features a lead fee cast copper silicon alloy body, thermoplastic seat cartridge, NPT threaded union inlet and NPT female outlet connections, reinforced diaphragm, and a bypass valve to control thermal expansion pressure. The reduced pressure rating is set at 70 psi (483 kPa). The maximum working pressure is 400 psi (27.6 bar) and temperature range is 33 to 180 degrees F (0.5 to 82 degrees C).

Features

• Serviceable in line
• Integral stainless steel strainer removable for cleaning
• Bypass valve controls thermal expansion pressure
• Sealed spring cage for accessible outdoor or pit installations

Specifications
Adjustable Reduced Pressure Range	25 to 75
Adjustable Reduced Pressure Range-BAR	1.7 to 5.2
Body Material	Lead Free Cast Copper Silicon Alloy
Brand	Watts
Corrosion Resistant Coating	No
Disc Material	Elastomer
EAN	098268860429
Gauge Option	No Gauge
High Pressure Reduced Pressure Range	Does Not Apply To Product
High Pressure Reduced Pressure Setting	Does Not Apply To Product
Inlet Connection Size	1 IN
Inlet Connection Type	Union Joint
Inlet Thread Type	NPT
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	180
Maximum Working Pressure-BAR	27.60
Maximum Working Pressure-PSI	400
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	1 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0125313
Series	LFN45B
Standard Reduced Pressure Setting-BAR	4.83
Standard Reduced Pressure Setting-PSI	70
Strainer	Yes
Strainer Material	Stainless Steel
Thermal Expansion Bypass	Yes
Trim Material	Does Not Apply To Product
Type	Kit
Valve Style	Standard
