Watts LFN240X-125/210 1 - Part of the LFN240 Series

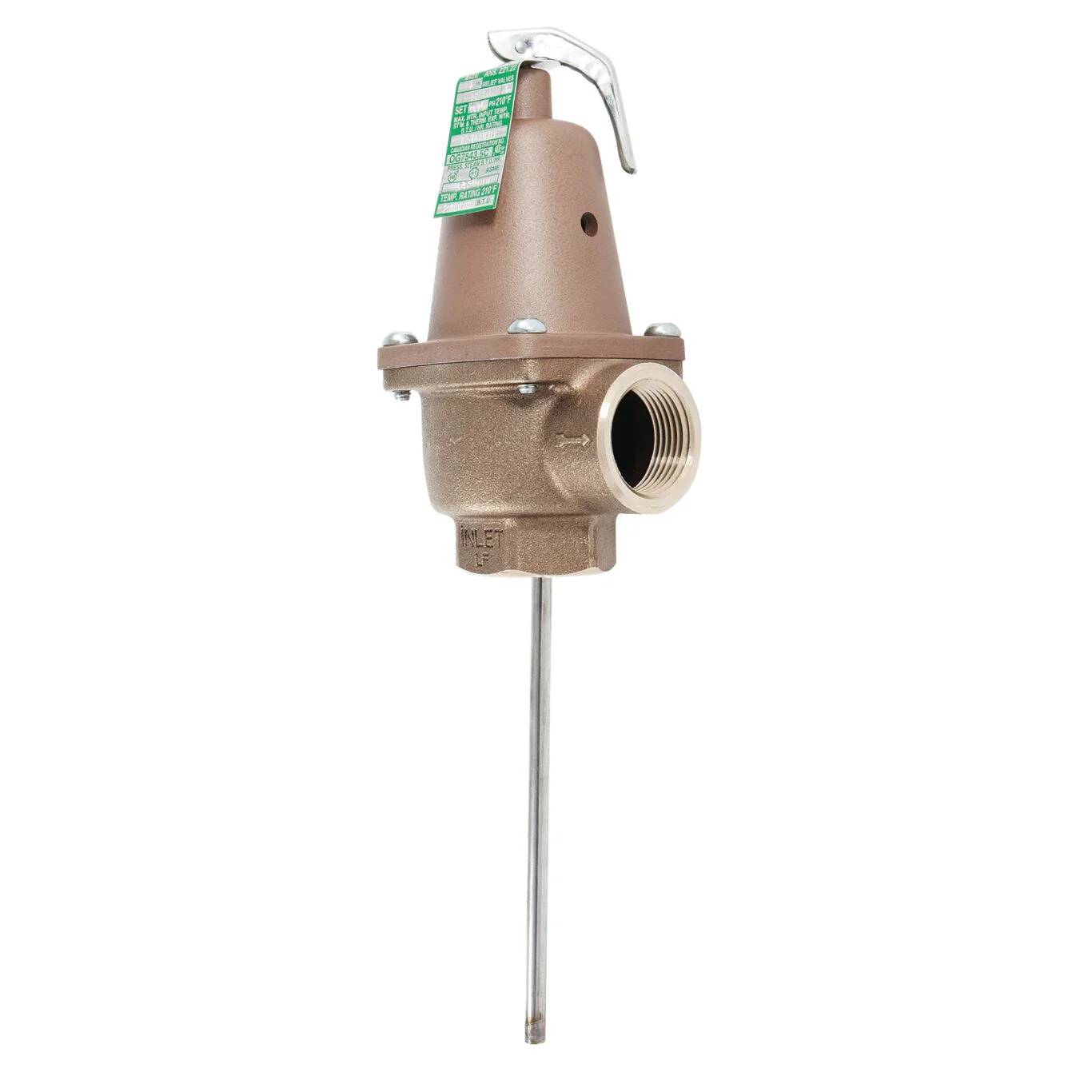

This 1 inch lead free automatic reseating temperature and pressure relief valve with a 6 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 125 psi.

Features

• Lead free construction
• Tamper resistant bonnet screws
• 6 Inch thermostat length
• Non-mechanical seat to disc alignment

Specifications
Body Material	Bronze
Brand	Watts
Buy American Act Compliant	YES
EAN	098268432534
Inlet Connection Size	1 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	1 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0556018
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	125
Protection Type	Temperature And Pressure
Series	LFN240
Temperature Relief-Fahrenheit	210
Thermostat Material	Stainless Steel
