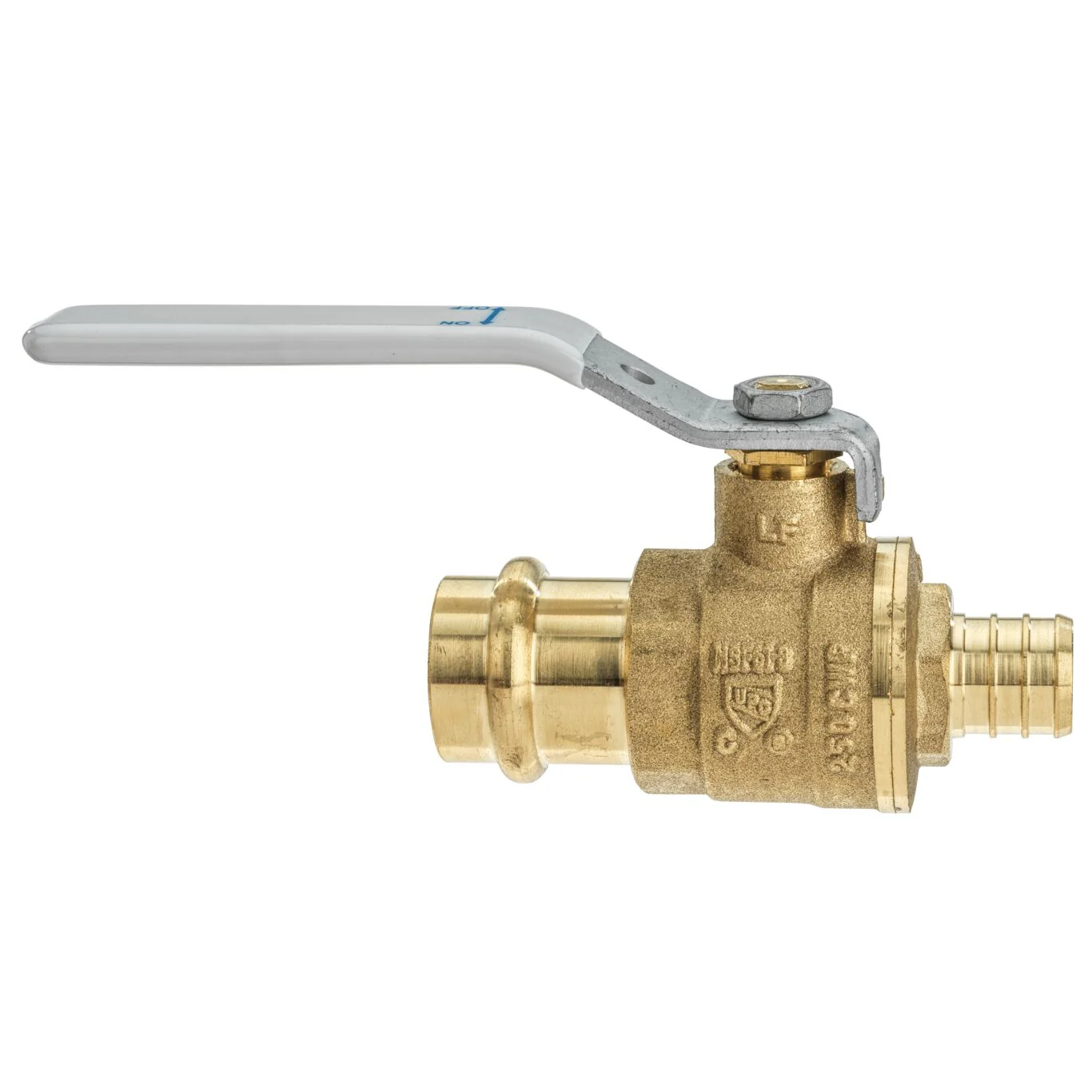

Watts LFFBV-3 PRxPEX 3/4 - Part of the LFFBV-3-PRxPEX Series

This 3/4 inch lead free two-piece, full port, ball valve with press x PEX connections is designed for use in plumbing, heating, and potable water applications. It features a lead free brass body, adjustable packing gland, and bottom-loaded blowout proof stem. The valve facilitates easy transition from copper tubing to PEX tubing. It has integral ASTM-B88 compliant press end connections on one side, with ASTM F-1087 compliant PEX connections on the other. The PEX fitting is rated for 160 psi at 73 degrees F, and the press fitting is rated to 250 psi CWP up to 210 degrees F.

Features

• Lead free brass body rated NSF61-8
• Bottom loaded blowout proof stem with packing nut
• PEX end connections comply to ASTM F-1087
• Press end connections comply to ASTM-B88

Specifications
Actuation	No
Assembled Dry	Yes
Balance Stop Plate	No
Ball Material	Chrome Plated Brass
Body Finish	Brass
Body Material	Lead Free Copper Silicon Alloy Brass
Brand	Watts
Class Rating	Does Not Apply To Product
Control Type	Lever Handle
CV Rating	Does Not Apply To Product
EAN	098268595024
Electrical Rating	Does Not Apply To Product
Inlet Connection Size	3/4 IN
Inlet Connection Size-Metric	19 MM
Inlet Connection Type	Press
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Temperature-Fahrenheit	73
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Operating Torque	Does Not Apply To Product
Outlet Connection Size	3/4 IN
Outlet Connection Type	Pex Crimped
Outlet Thread Type	Does Not Apply To Product
Part Number	88009056
Port Type	Full
Seat Material	Virgin PTFE
Series	LFFBV-3-PRxPEX
Stem Packing Material	Virgin PTFE
Stem Shaft Material	Brass
Stem Type	Bottom Loaded Blowout Proof
Thrust Washer Material	Virgin PTFE
Valve Style	2-piece
WOG Rating	163 PSI

• Specification Sheet - LFFBV-3-PRxPEX
• Specification Sheet - LFFBV-3-PRxPEX (French)
• Specification Sheet - LFFBV-3-PRxPEX (Spanish)

UPC - 098268595024
