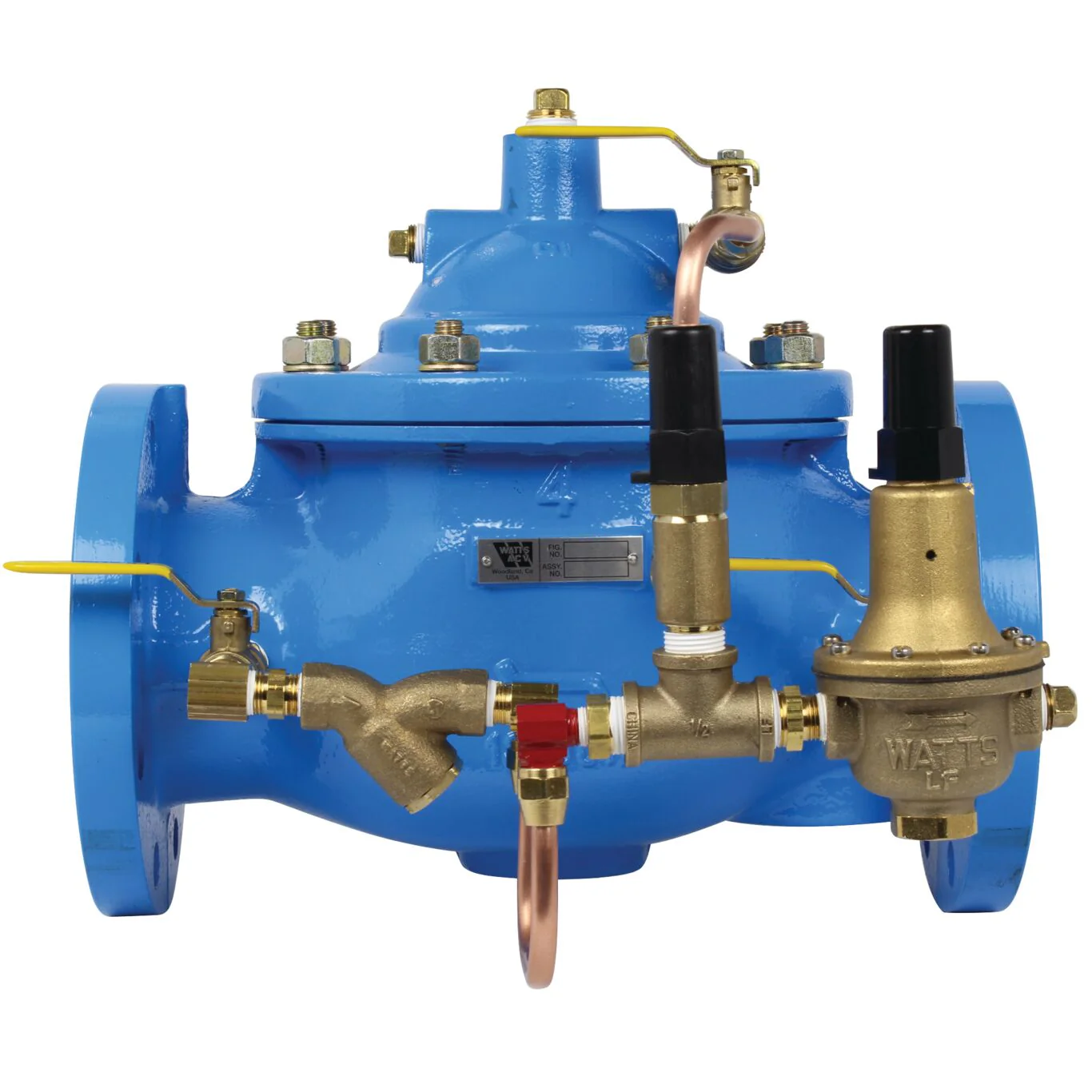

Watts LFF115 4 - Part of the LFF115 Series

This 4 inch globe pattern class 150 flanged epoxy coated pressure reducing control valve, Classic series F115, is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. This valve includes full port, isolation cocks, and pilot circuit Y strainer.

Features

• Globe pattern
• Class 150 flanged
• Epoxy coated
• Copper tubing/brass fittings

Specifications
Adjustable Reduced Pressure Range	20-175
Adjustable Reduced Pressure Range-BAR	1.4-12.1
ArmorTek Technology	No
Body Material	Ductile Iron
Brand	Watts
Buy American Act Compliant	NO
Coating	Bonded Epoxy
EAN	098268044713
Inlet Connection Size	4 IN
Inlet Connection Type	Flanged Joint
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	160
Maximum Working Pressure-PSI	250
Outlet Connection Size	4 IN
Outlet Connection Type	Flanged Joint
Part Number	V2016-04
Series	LFF115
Valve Style	Classic
Warranty Name	Standard Watts Warranty

• Schematic - Automatic Control Valve LFF115
• Schematic - Automatic Control Valve LFF115 (Spanish)

UPC - 098268044713
