Watts LF6 1/4 - Part of the LF6 Series

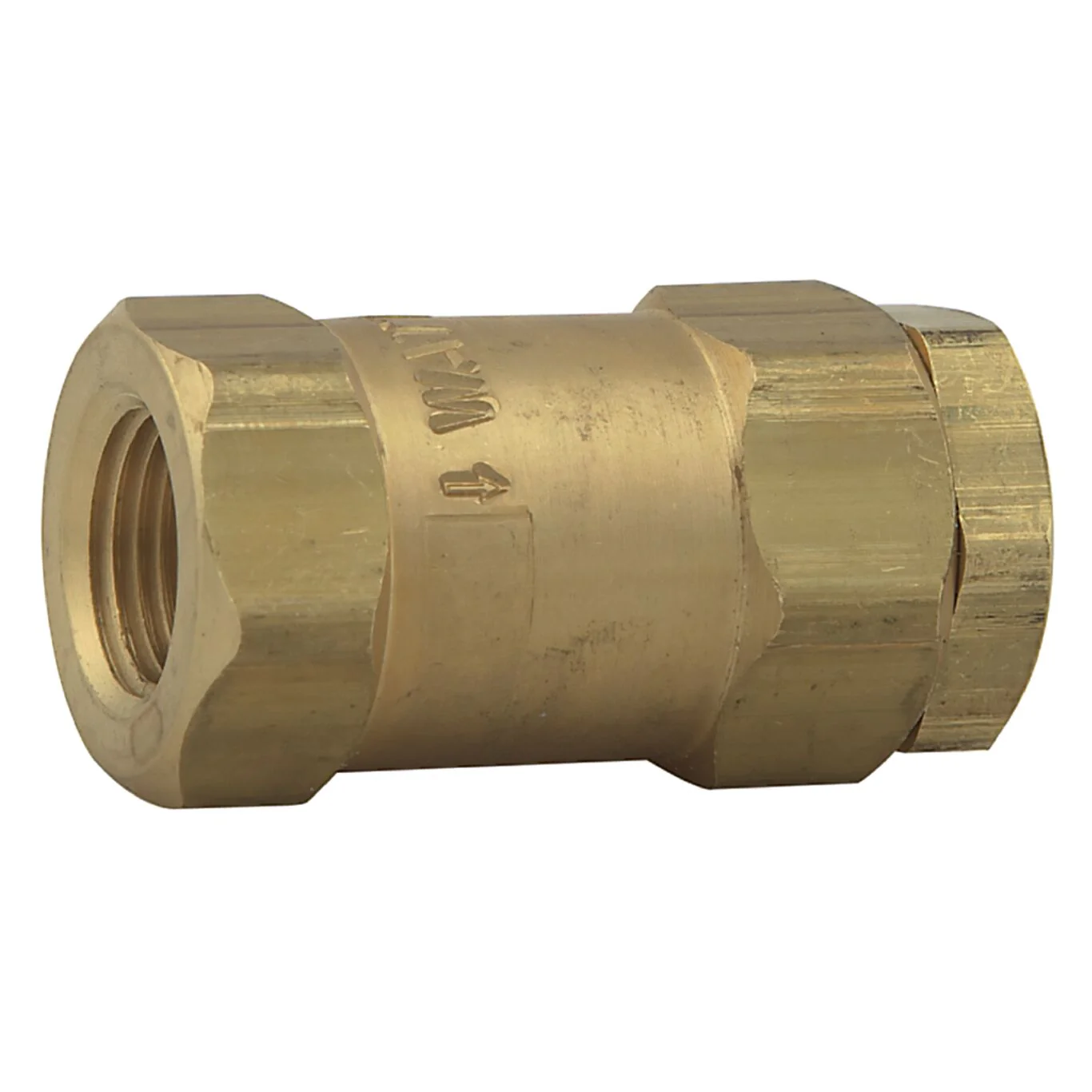

This 1/4 inch lead free MIDI check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low opening pressure, low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, elastomer seat, NPT female threaded end connections, positive back stop, and a unique positive check module. The maximum pressure is 200 psi (13.8 bar) and the maximum temperature is 180 degrees F (82 degrees C).
Features- Lead free brass body
- Elastomer seat
- NPT female x female threaded connections
- Bubble tight seating
| Specifications | |
|---|---|
| Body Material | Lead Free Copper Silicon Alloy |
| Body Pattern | Straight |
| Brand | Watts |
| Class Rating | Does Not Apply To Product |
| EAN | 098268653151 |
| Inlet Connection Size | 1/4 IN |
| Inlet Connection Size-Metric | 6 MM |
| Inlet Connection Type | Female Threaded |
| Inlet Thread Type | FPT |
| Lead Free | YES |
| Maximum Operating Temperature-Celsius | 82.00 |
| Maximum Operating Temperature-Fahrenheit | 180 |
| Maximum Working Pressure-PSI | 200 |
| Minimum Temperature - Celsius | -18.00 |
| Minimum Temperature-Fahrenheit | 0 |
| Outlet Connection Size | 1/4 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | FPT |
| Part Number | 0123066 |
| Pressure-Temperature Rating-BAR | 13.8 BAR at 82 degree C |
| Series | LF6 |
| WOG Rating | 200 PSI |
- Specification Sheet - LF6/P6
