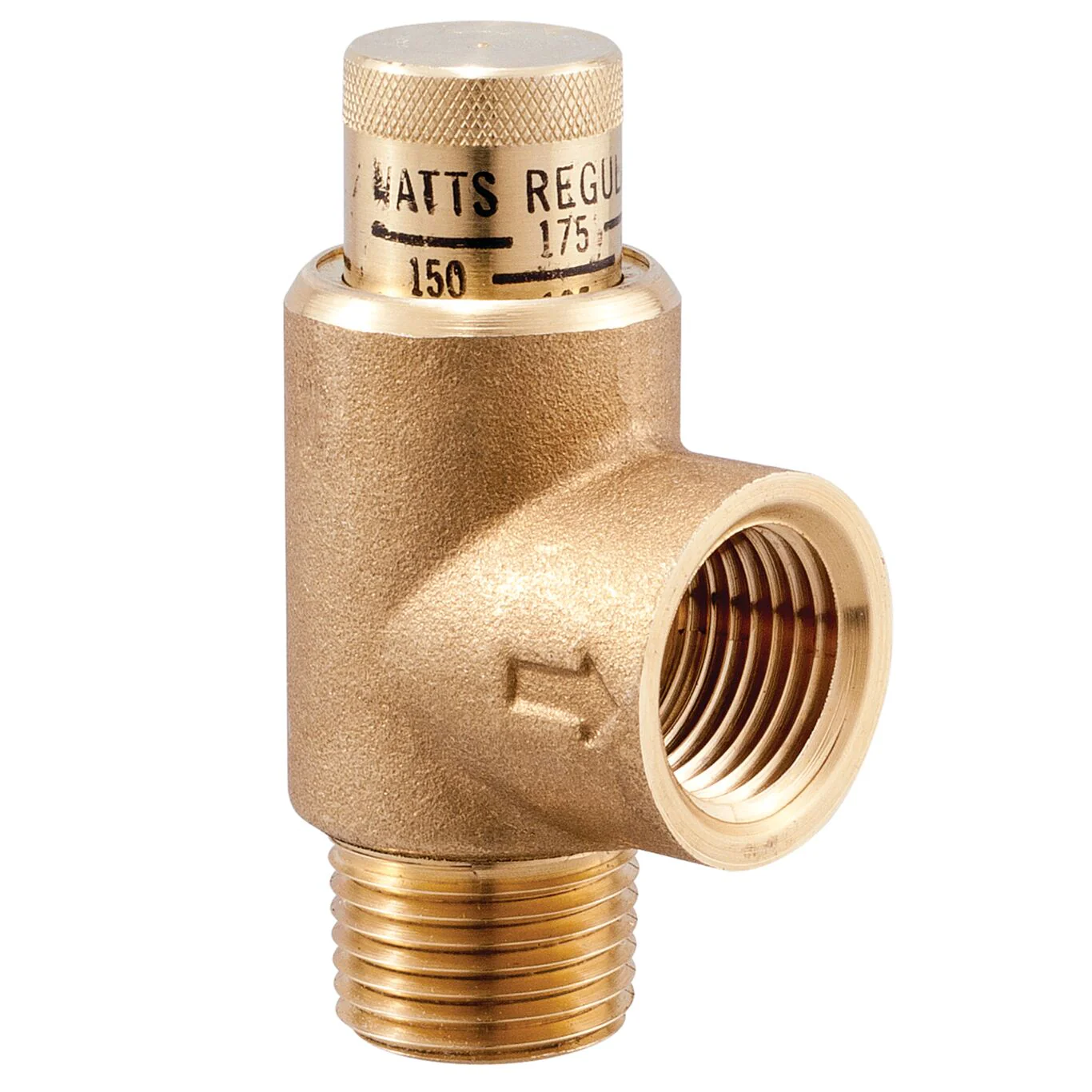

Watts LF530C 3/4 - Part of the LF530C Series

This 3/4 inch lead free calibrated pressure relief valve is designed for use as protection against excessive pressure build-up in systems containing water, oil and air. It has a lead free brass body, 3/4 inch NPT male inlet and 1/2 inch NPT female (drain) outlet. This valve has an adjustable pressure of 100 to 300 psi (6.9 to 20.7 bar) and maximum working temperature of 180 degrees F.

Features

• Lead free brass body construction
• All stainless steel spring
• Adjustable range 100 to 300 psi
• Maximum temperature 180 degree F

Specifications
Body Material	Lead Free Brass
Brand	Watts
Buy American Act Compliant	YES
EAN	098268587807
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Working Pressure-PSI	300
Outlet Connection Size	1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0121626
Pressure Range	50 to 175 PSI
Series	LF530C

• Specification Sheet - LF53, LF530C

UPC - 098268587807
