Watts LF3L-125 3/4 - Part of the LF3L Series

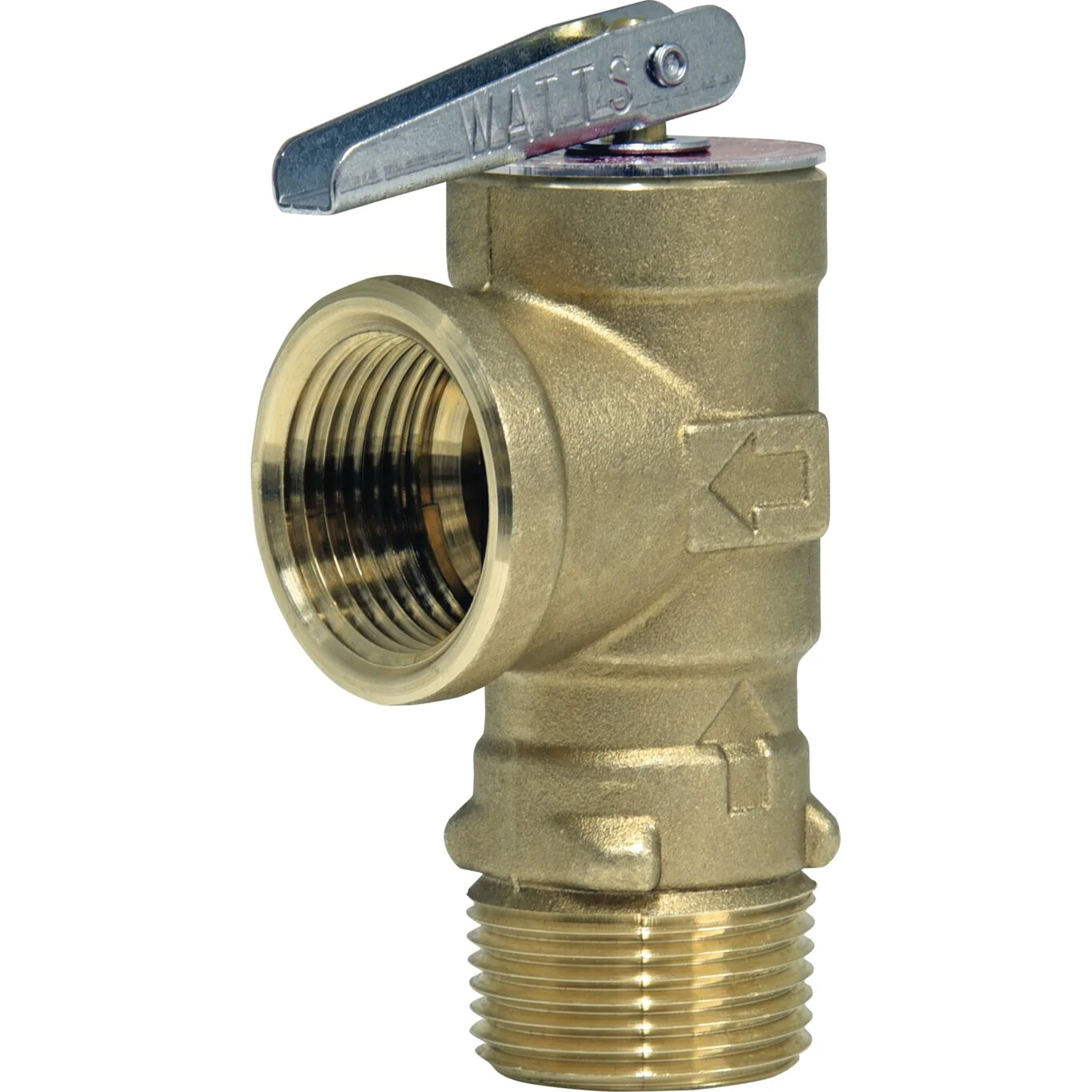

This 3/4 inch lead free pressure relief valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a lead free copper alloy body with NPT threaded male inlet and NPT threaded female (drain) outlet, test lever, and stainless steel spring. It is ANSI Z21.22 approved, ASME rated and design certified and listed by CSA. The pressure relief is set at 125 psi (8.6 bar).

Features

• Lead free copper alloy body construction
• Test lever included
• Relieves excessive pressure on tankless water heaters
• ASME approved

Specifications
Body Material	Lead Free Copper Alloy
Brand	Watts
Buy American Act Compliant	YES
EAN	098268435177
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Working Pressure-PSI	150
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0556033
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	125
Series	LF3L

• Specification Sheet - LF3L, LF53L

UPC - 098268435177
