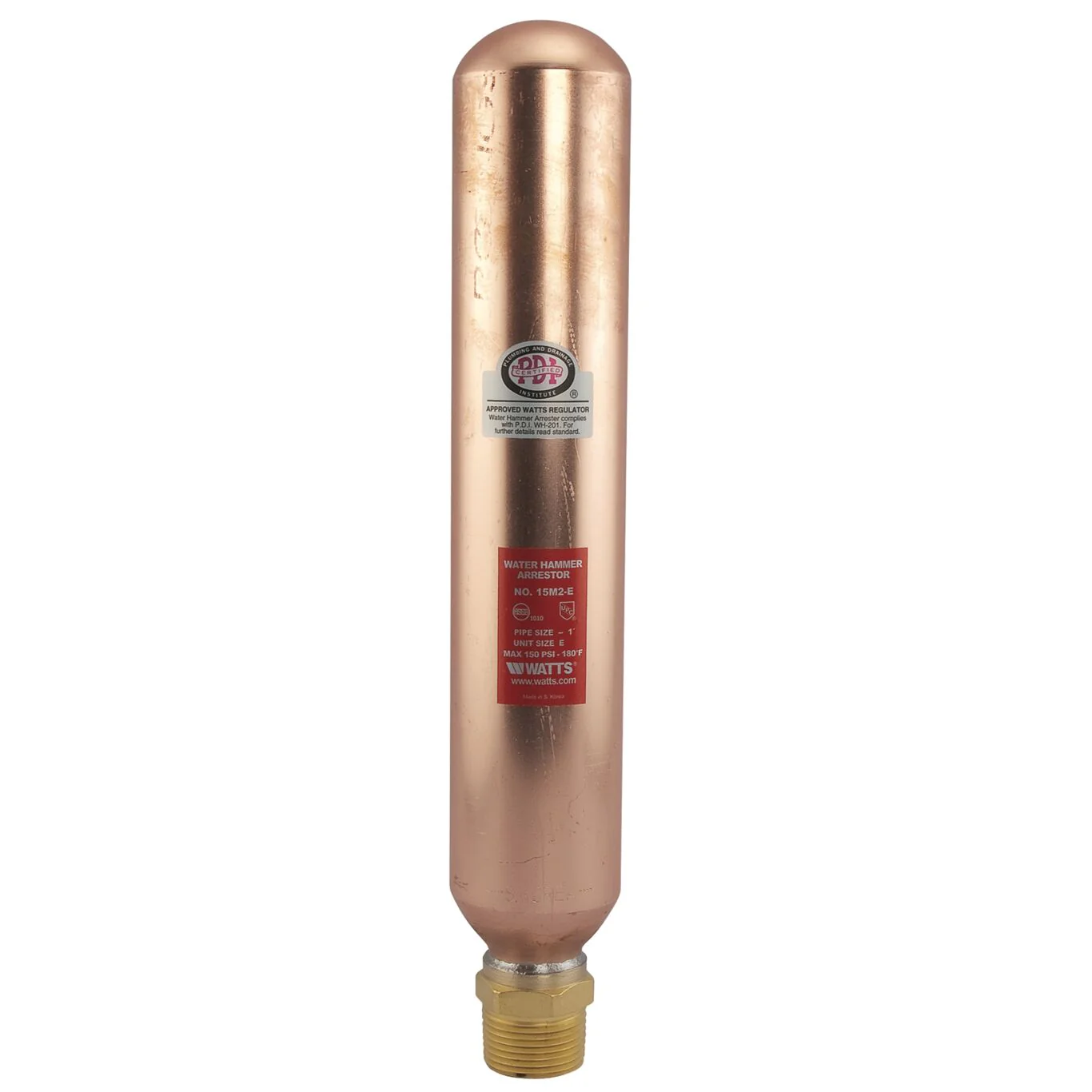

Watts LF15M2-E 1 - Part of the LF15M2 Series

This 1 inch, unit size E lead free water hammer arrestor is used in commercial and industrial applications to control water pressure shock and prevent water hammer conditions. It consists of a copper body with a lead free brass NPT threaded hex adapter, EPDM seals and O-rings, polypropylene piston, and cap. It is factory air charged at 60 psi (4.2 bar) and is permanently capped and epoxy sealed to absorb the shock and is not rechargeable. It may be installed in new or existing plumbing systems with a standard pipe tee vertically, horizontally or at any angle and is ideal for commercial dishwashers, washing machine, and quick-closing faucets applications. It is designed to operate on all domestic and commercial lines at 150 psi (10.3 bar) working pressure. This water hammer arrestor, size E is used to cover the required PDI listed 114 to 154 fixture units.

Features

• Lead free brass NPT hex adapter for easy installation
• Factory air charged at 60 psi (4.2 bar)and is not rechargeable in the field
• May be installed in concealed locations without access panels
• ASSE, ANSI and PDI approved and UPC listed

Specifications
Air Precharge	60 PSI
Air Valve	No
Body Material	Copper
Brand	Watts
Buy American Act Compliant	NO
Connection Size	1 IN
Connection Size-Metric	25 MM
Connection Type	Female Threaded
EAN	098268526165
Factory Set Pressure-PSI	60
Lead Free	YES
Maximum Operating Temperature-Celsius	82.00
Maximum Operating Temperature-Fahrenheit	180
Maximum Working Pressure-BAR	10.00
Maximum Working Pressure-PSI	150
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Number of Fixture Units	114 to 154
Part Number	0750164
Product Overall Height	12.6875 IN
Product Overall Width	2.125 IN
Series	LF15M2
Temperature Range	33 to 180 degree F
Thread Type	NPT
