Watts - FD-920 - Parking Deck Drain for Precast Slabs

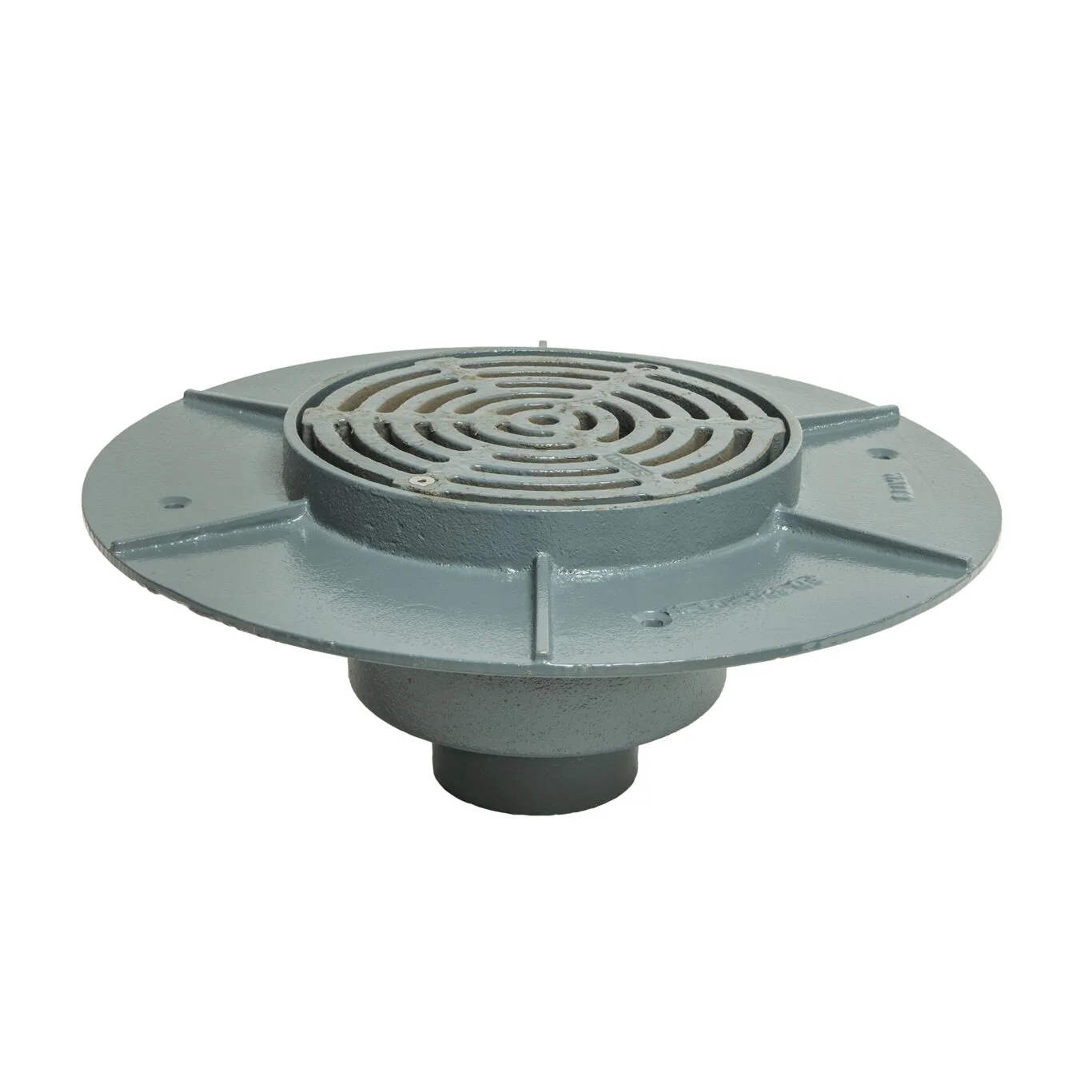

The Watts FD-920 is a heavy-duty parking deck floor drain engineered for elevated precast concrete slab installations. With an epoxy-coated cast iron body and an integral countersunk deck flange, it offers structural reliability and corrosion resistance in vehicular traffic areas. The top features a 10⅜″ round heel-proof ductile iron grate securely fastened with a gasket seal to prevent leakage into lower levels. The standard outlet is a no-hub connection for ease of piping integration.

Key Features

• Epoxy-coated cast iron body and integral countersunk deck flange for secure installation on elevated decks

• 10⅜″ round top with secured ductile iron heel-proof grate designed for vehicular load zones

• Gasket seal between body and top assembly to minimize leak-through to lower levels

• No-hub (MJ) standard outlet for compatibility with common drainage systems

• Built for heavy commercial traffic environments such as parking decks and garage slabs

Downloads:

• Specification Sheet
