Watts - FD-910 - Parking Deck Drain for Precast Slabs

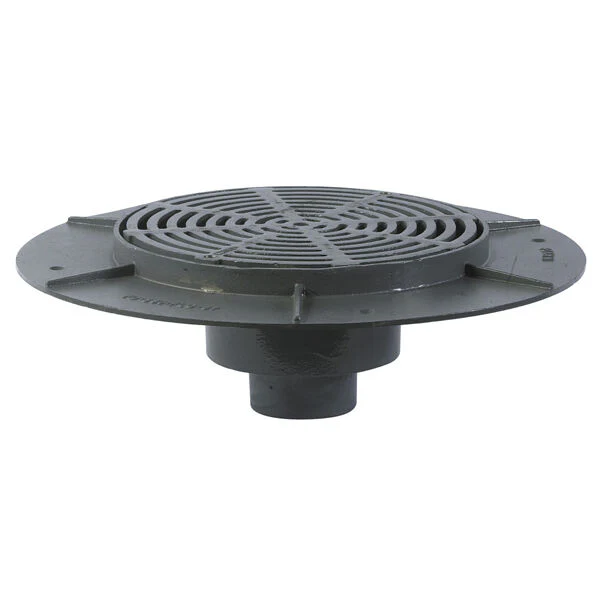

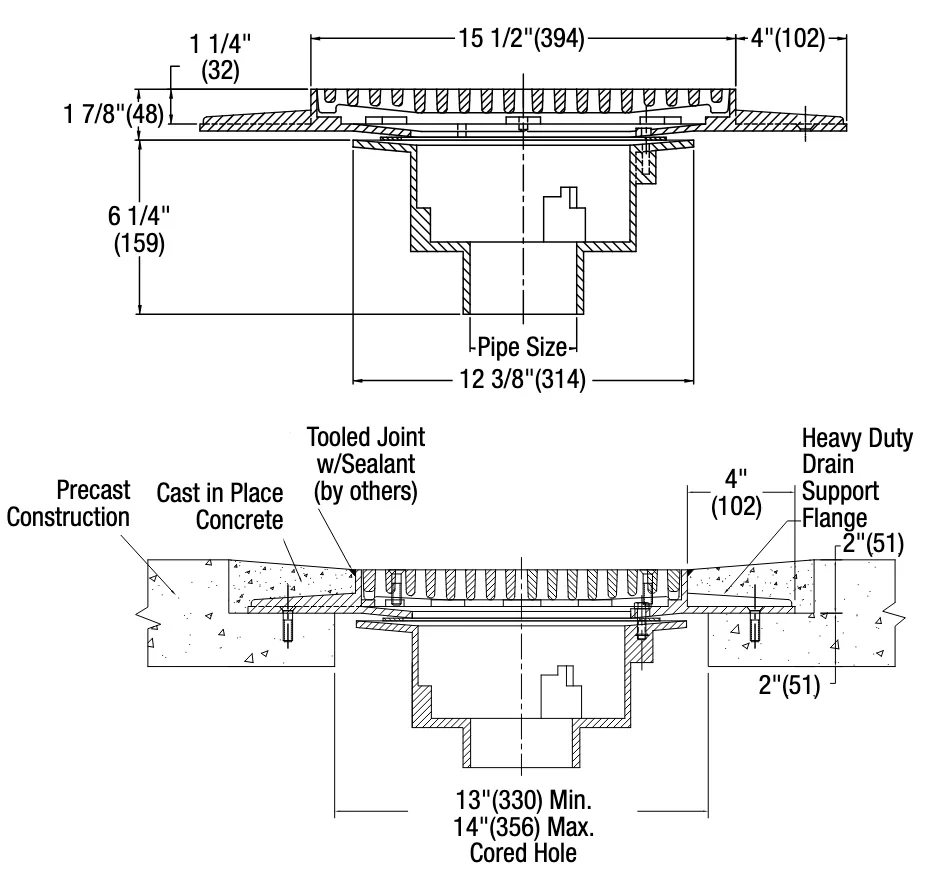

The Watts FD-910 is an epoxy-coated cast-iron floor drain engineered for elevated parking structures and heavy-duty use. Designed specifically for precast slab installations, it features a large 15½″ round top with a secure ductile-iron, heel-proof grate and an integral countersunk deck flange. A gasket seal between the body and top helps prevent water leakage into lower levels.

Key Features

• 15½″ round top with secured ductile-iron heel-proof grate for high traffic and vehicular zones

• Epoxy-coated cast-iron body with integral countersunk deck flange for reliable installation in precast slabs

• Gasket seal between body and top assembly to prevent leaks in multi-level structures

• Standard outlet is no-hub with multiple pipe-size and connection options available

• Rated for heavy commercial traffic in parking decks, garages, and similar elevated structures

Downloads:

• Specification Sheet
