Watts - FD-430 - Side Outlet Area Drain with Hinged Grate

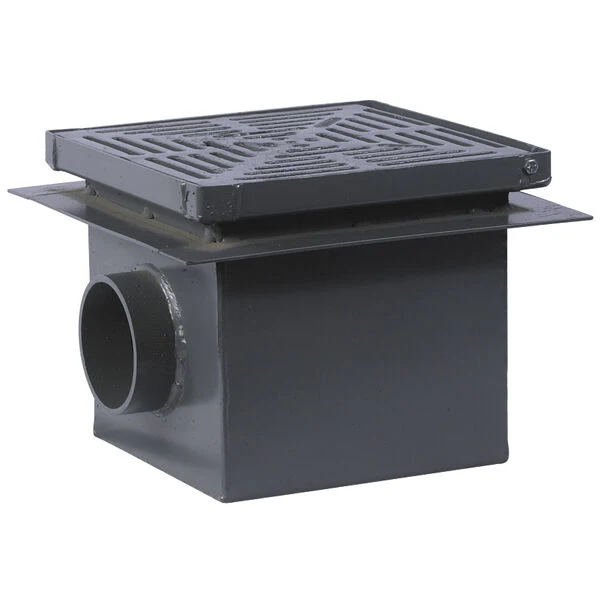

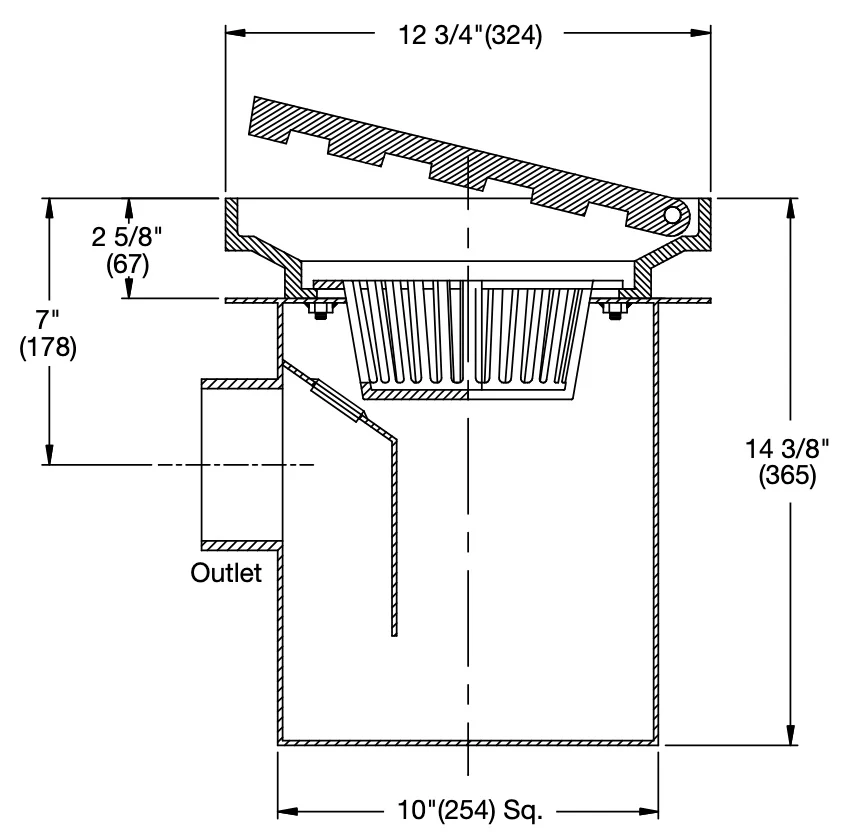

The Watts FD-430 is a robust area drain designed for heavy-duty commercial traffic zones. It features an epoxy-coated steel body with an anchor flange, a 12-¾″ × 12-¾″ square heel-proof ductile iron hinged grate, an integral trap with clean-out plug, a removable sediment bucket, and a side no-hub outlet connection.
Key Features
-
Epoxy-coated steel body for durability and long-term performance
-
Heavy-duty 12-¾″ square hinged grate rated for heavy traffic environments
-
Integrated trap system with clean-out plug and sediment bucket for maintenance ease
-
Side outlet design facilitates flexible piping connection in retrofits or tight spaces
-
Rated for extra-heavy-duty use in commercial or industrial applications
Downloads:
Description
The Watts FD-430 is a robust area drain designed for heavy-duty commercial traffic zones. It features an epoxy-coated steel body with an anchor flange, a 12-¾″ × 12-¾″ square heel-proof ductile iron hinged grate, an integral trap with clean-out plug, a removable sediment bucket, and a side no-hub outlet connection.
Key Features
-
Epoxy-coated steel body for durability and long-term performance
-
Heavy-duty 12-¾″ square hinged grate rated for heavy traffic environments
-
Integrated trap system with clean-out plug and sediment bucket for maintenance ease
-
Side outlet design facilitates flexible piping connection in retrofits or tight spaces
-
Rated for extra-heavy-duty use in commercial or industrial applications
