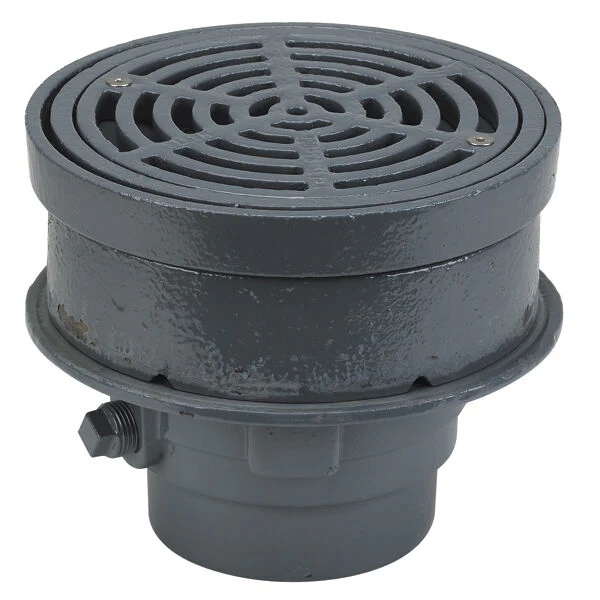

Watts - FD-320-SET - Area Drain with 8 in. Round Adjustable Top

The Watts FD-320-SET is an epoxy-coated cast iron area drain designed for heavy commercial traffic environments. It features an anchor flange for secure mounting, a membrane clamp with weepholes for perimeter seepage control, an 8″ (203 mm) diameter adjustable top plate to align with finished floor height, a loose-set heel-proof ductile iron grate supported by a bucket, and a no-hub (MJ) outlet as the standard connection.

Key Features

• 8″ diameter adjustable top plate allows precise field alignment with finished floor levels

• Double drainage feature with weepholes to recapture perimeter seepage and prevent standing water

• Loose-set heel-proof ductile iron grate supported by a removable bucket for easy cleaning and maintenance

• Epoxy-coated cast iron construction with anchor flange for durability and secure installation

• Rated for heavy commercial traffic with a standard no-hub outlet and multiple sizes/options available

Downloads:

• Specification Sheet
