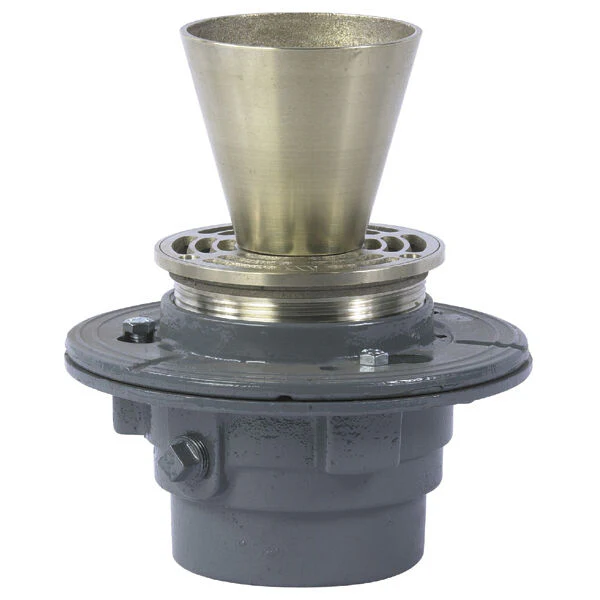

Watts - FD-100-EF - Floor Drain with Round Funnel

The Watts FD-100-EF is a specification-grade floor drain engineered for commercial and light industrial applications. It features an epoxy-coated cast iron body with anchor flange, reversible clamping collar, primary and secondary weepholes for double drainage, and an adjustable heel-proof nickel bronze strainer paired with a 4″ diameter nickel bronze funnel and a standard no-hub outlet.

Key Features

• Epoxy-coated cast iron construction with anchor flange for durability and installation stability

• Reversible clamping collar plus primary and secondary weepholes to manage perimeter seepage

• Adjustable nickel bronze strainer with 4″ diameter round funnel for indirect waste compatibility

• Available with multiple outlet types (2″, 3″, 4″, 6″) and finishes to suit installation needs

• Heel-proof grate design to handle commercial traffic environments

Downloads:

• Specification Sheet
