Watts DWBM2 - Part of the 2M2 DWB Series

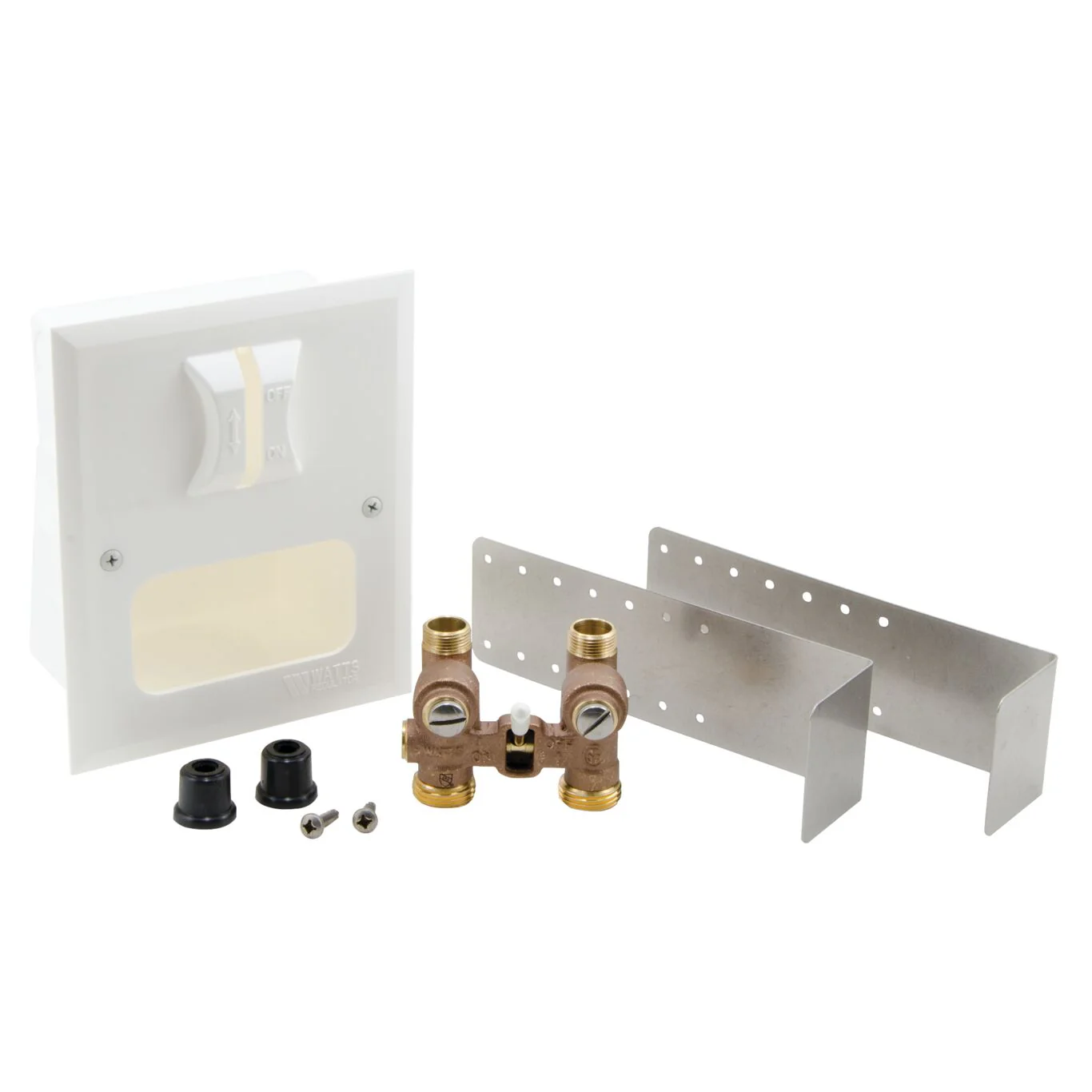

This Duo-Clozureā¢ washing machine shutoff valve is used in washing machine applications to manually control water flow and pressure from the hot and cold water supply piping to the flexible hoses feeding a washing machine. It prevents the washing machine hoses from bursting thereby preventing water damage to the home. It consists of a washing machine shutoff valve with 1/2 inch ell solder connections, adjustable stud mounting brackets, a single Duo-Cloz lever to control shutoff of both hot and cold water supplies, and water pressure test plugs. Includes a decorative white faceplate that can be painted or papered to match wall decor. The maximum pressure is 150 psi (10.3 bar).
Features- Decorative white faceplate
- Side or top water supply piping
- Water pressure test plugs
- Easy to install
| Specifications | |
|---|---|
| Brand | Watts |
| Buy American Act Compliant | YES |
| Cold Water Inlet Connection Size | 1/2 IN |
| Cold Water Inlet Connection Type | Socket |
| Cold Water Outlet Connection Type | Socket |
| Control Type | Lever Handle |
| EAN | 098268858389 |
| Hot Water Inlet Connection Size | 1/2 IN |
| Hot Water Inlet Connection Type | Socket |
| Hot Water Outlet Connection Type | Socket |
| Lead Free | NO |
| Maximum Pressure-PSI | 150 |
| Maximum Temperature-Fahrenheit | 180 |
| Part Number | 0006625 |
| Series | 2M2 DWB |
- Specification Sheet - 2M2 DWB
- Specification Sheet - 2M2 DWB
Original: $384.82
-65%$384.82
$134.69
Description
This Duo-Clozureā¢ washing machine shutoff valve is used in washing machine applications to manually control water flow and pressure from the hot and cold water supply piping to the flexible hoses feeding a washing machine. It prevents the washing machine hoses from bursting thereby preventing water damage to the home. It consists of a washing machine shutoff valve with 1/2 inch ell solder connections, adjustable stud mounting brackets, a single Duo-Cloz lever to control shutoff of both hot and cold water supplies, and water pressure test plugs. Includes a decorative white faceplate that can be painted or papered to match wall decor. The maximum pressure is 150 psi (10.3 bar).
Features- Decorative white faceplate
- Side or top water supply piping
- Water pressure test plugs
- Easy to install
