Watts CSM-81-F 2 1/2 - Part of the CSM-81-F Series

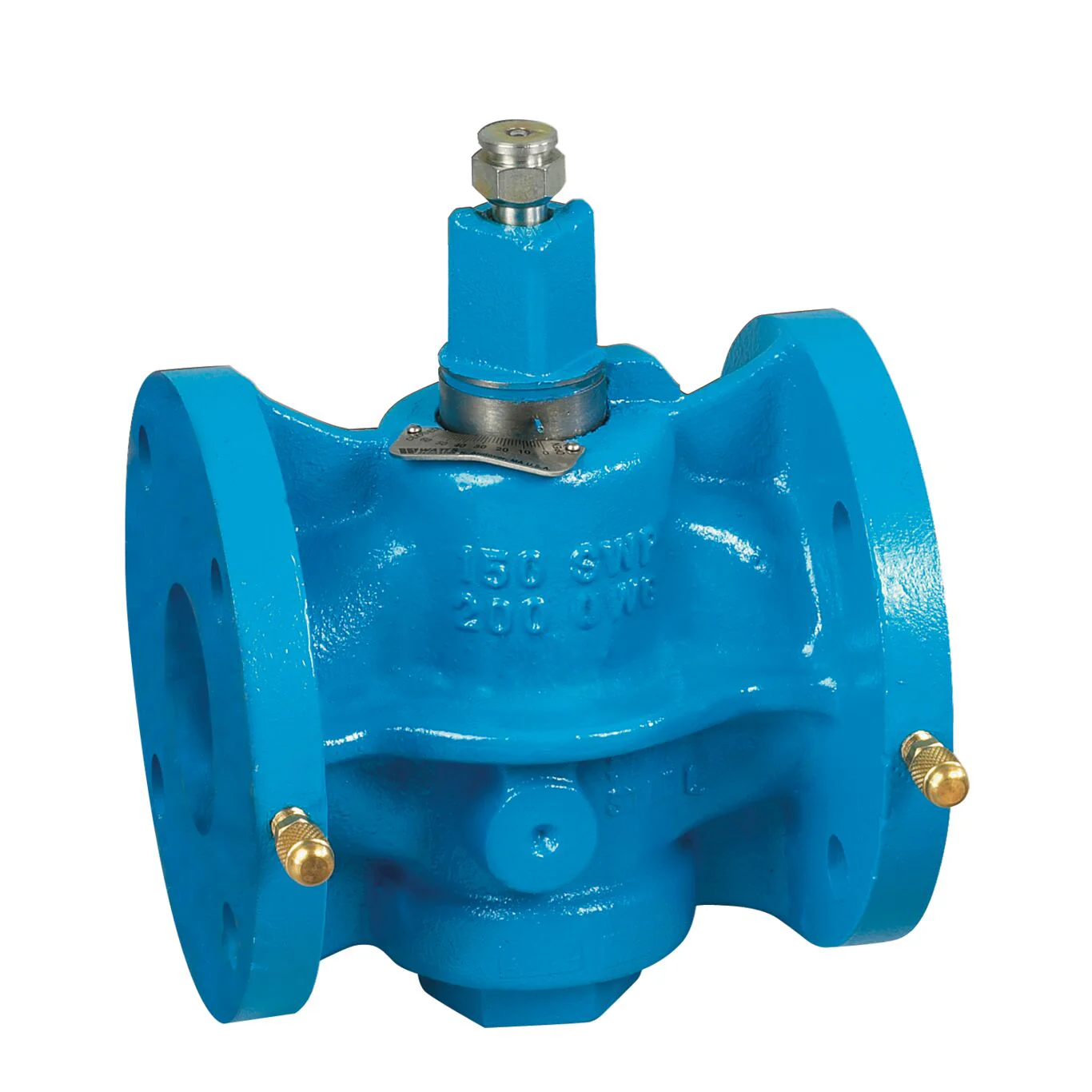

This 2 1/2 inch flow measurement valve monitors system flow in medium to high flow rate HVAC units providing a highly accurate flow measurement. It consists of semi-steel body construction with a low-torque cylindrical plug design, flanged end connections, checked metering ports with drip caps, position indicator plate, positive shutoff, and two brass pressure taps. It is ideal in hot/chilled water units such as fan coil units, water source heat pumps, reheat coils, panel coils, branch lines, and pumps.

Features

• Accurate flow measurement
• Flanged end connections
• Positive shutoff
• Low torque

Specifications
Body Material	Semi Steel
Brand	Watts
Buy American Act Compliant	NO
EAN	098268832372
Inlet Connection Size	2 1/2 IN
Inlet Connection Size-Metric	65 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	PTF
Lead Free	NO
Maximum Temperature-Fahrenheit	250
Maximum Working Pressure-BAR	12.00
Maximum Working Pressure-PSI	175
Outlet Connection Size	2 1/2 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	PTF
Part Number	0036540
Series	CSM-81-F

• Specification Sheet - CSM-81-F

UPC - 098268832372
