Febco - 611-MJXFL 8 - Part of the 611 Series

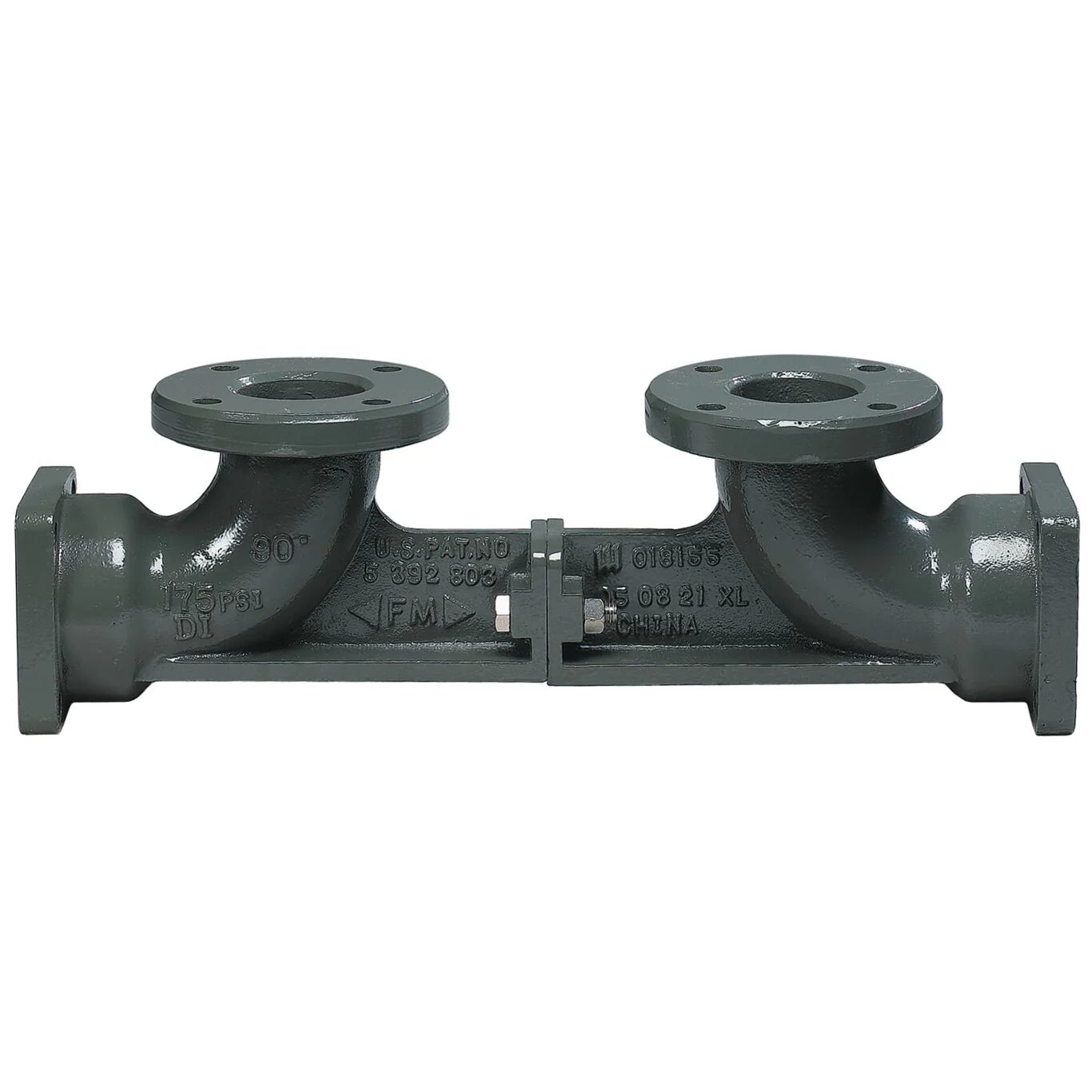

This 8 inch mechanical joint by flange valve setter is constructed of fusion epoxy coated ductile iron. It augments the installation of the MasterSeries^® N-pattern backflow preventer valve. Integral ductile iron supports between elbows transfer thrust downstream, thus eliminating thrust block requirements between elbows. It has a ductile iron body. The maximum working pressure is 175 psi (12.1 bar).

Features

• Epoxy coated for longevity
• ANSI 150 pound flanged connections
• For MasterSeries N shape
• Stainless steel fasteners

Specifications
Body Coating Type	Fusion Epoxy Coated
Body Material	Ductile Iron
Brand	FEBCO
Center Joint Bolt Material	Stainless Steel
Center Joint Nut Material	Stainless Steel
Diameter	8 IN
EAN	643925015270
Inlet Connection Size	8 IN
Inlet Connection Size-Metric	200 MM
Inlet Connection Type	Mechanical Joint
Lead Free	YES
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Outlet Connection Size	8 IN
Outlet Connection Type	Flanged Joint
Part Number	905202
Series	611
Temperature Range	32 to 140 degree F,0 to 60 degree C

• Specification Sheet - 611 F x F
• Specification Sheet - 611 MJ x F
• Specification Sheet - 611 MJ x MJ

UPC - 643925015270
